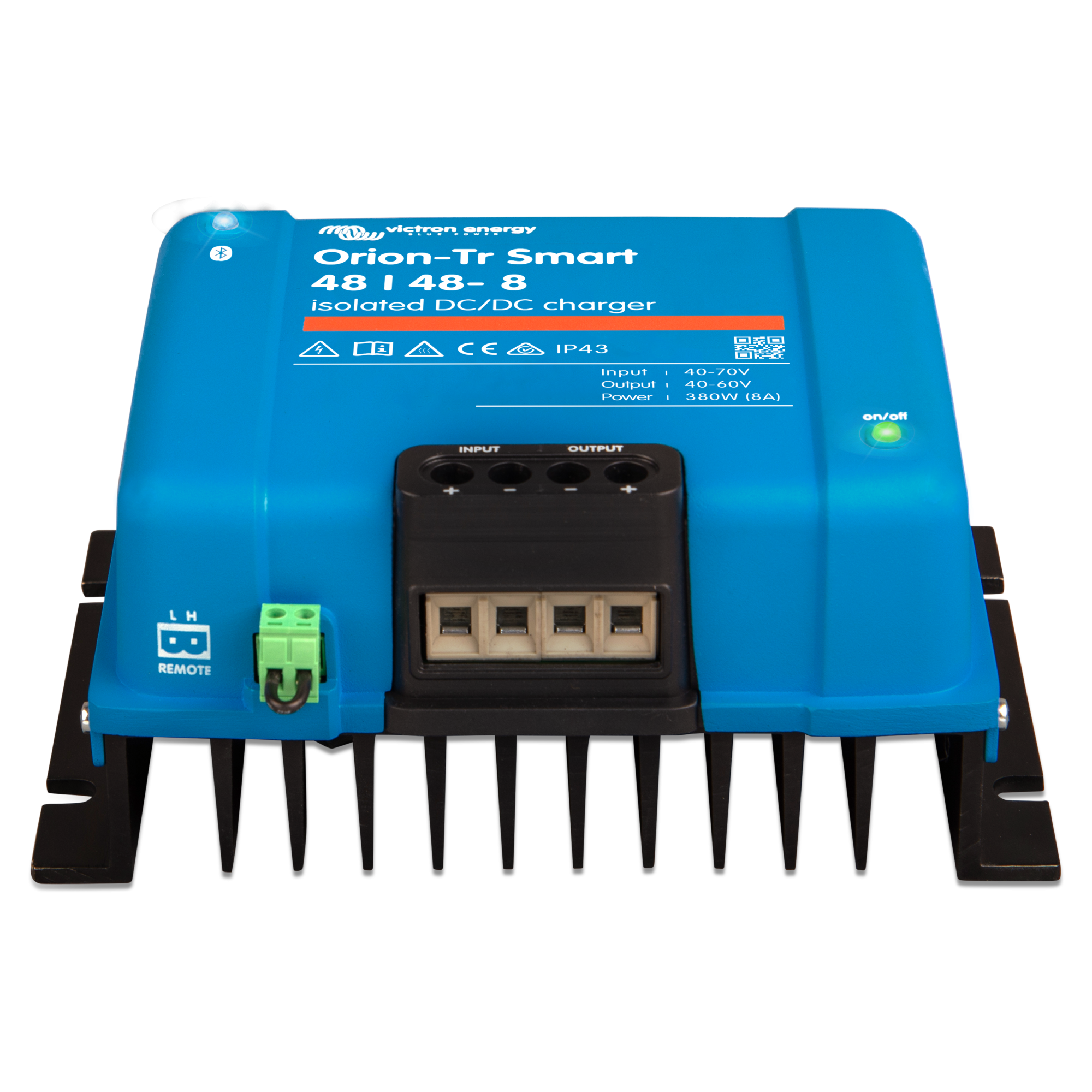

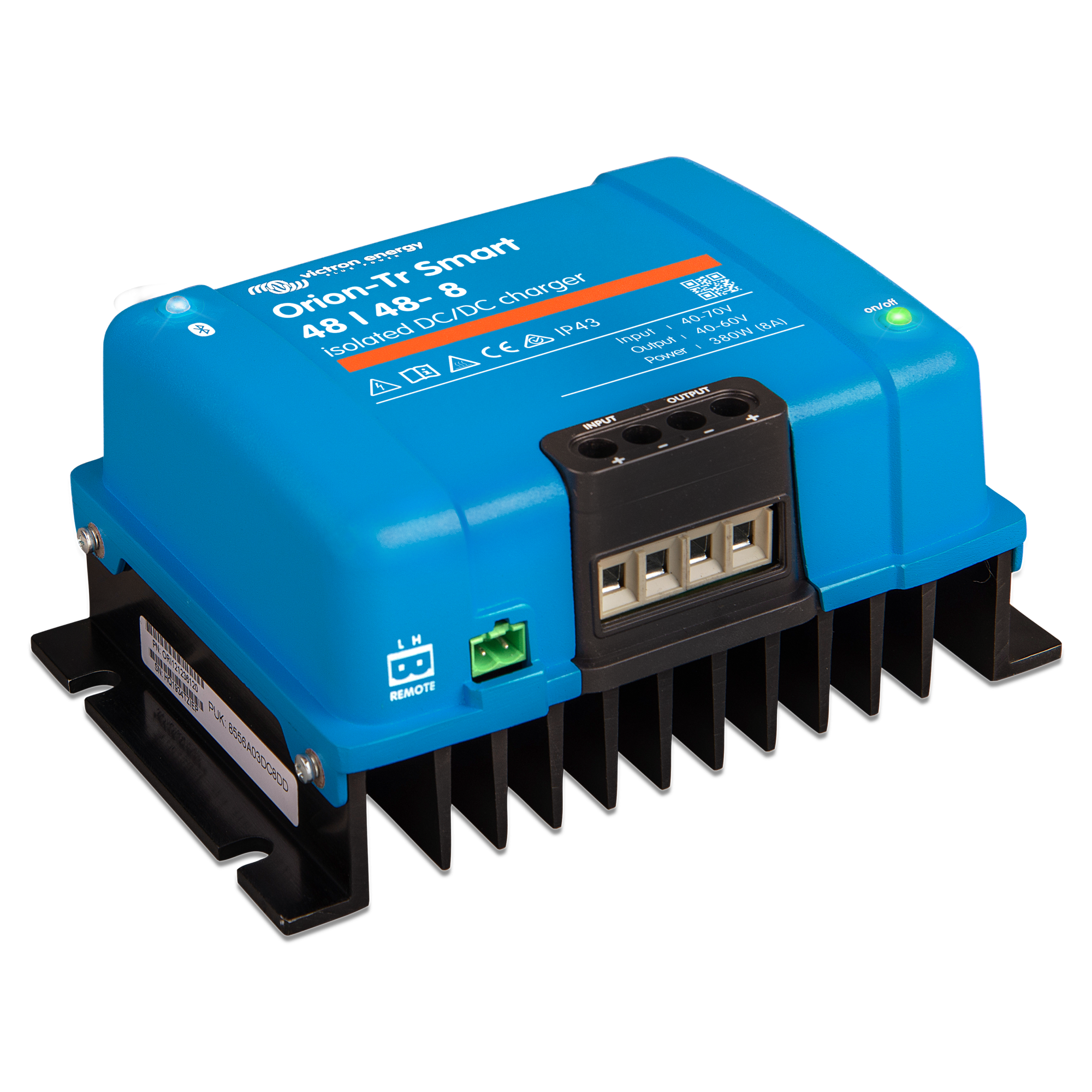

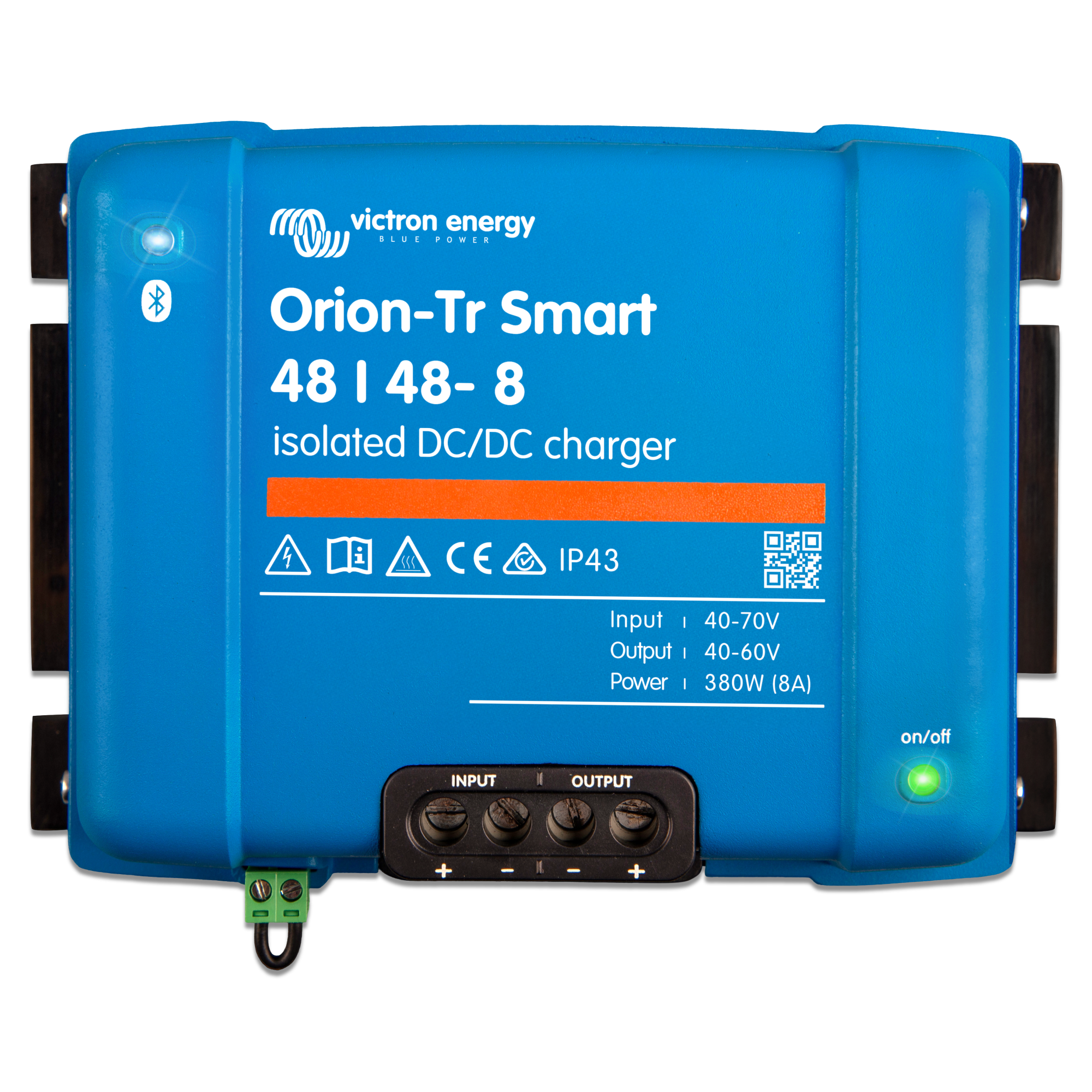

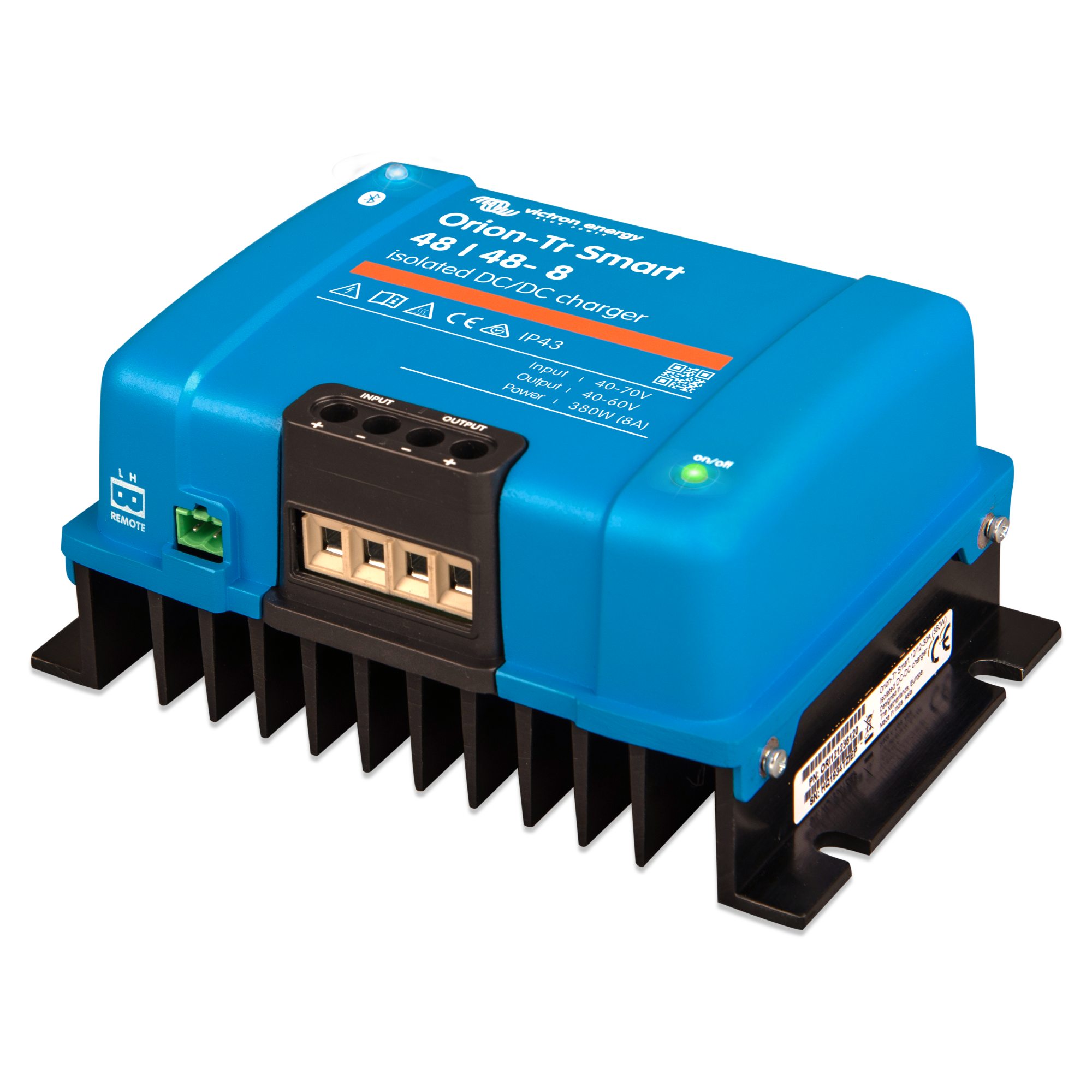

The Victron Energy Orion-Tr Smart 48/48-8A (380W) Isolated DC-DC Charger is a high-performance, fully programmable charger designed for use in dual battery systems in vehicles and boats. With galvanic isolation and intelligent charging algorithms, it ensures safe, efficient, and reliable charging of service batteries from alternator or starter batteries.
Key Features:
- Bluetooth Smart Enabled: Easily monitor, configure, and update the charger with the VictronConnect app, using any compatible smart device.
- Adaptive 3-Stage Charging: The Orion-Tr Smart features a bulk, absorption, and float charge algorithm tailored for both lead acid and lithium batteries, enhancing battery health and lifespan.
- Flexible Installation: Remote on/off capability, screw terminals for easy setup, and support for parallel connections allow seamless system expansion.
- Highly Efficient and Durable: With an 89% efficiency rating and built-in temperature protection, it ensures optimal performance even in demanding environments.
The Orion-Tr Smart 48/48-8A is the ideal choice for powering 48V systems from a 48V source in RVs, boats, and off-grid vehicles. Whether you need constant voltage power or advanced battery charging, this charger delivers intelligent energy control in a compact, rugged design.
| Orion-Tr Smart 48/48-8A | Technical Specifications |
| Input Voltage Range | 32-70 Volts |
| Under Voltage Shutdown | 28 Volts |
| Under Voltage Restart | 30 Volts |
| Nominal Output Voltage | 48.2 Volts |
| User Adjustable Output Voltage Range | 40-60 Volts |
| Continuous Output Current | 8 Amps |
| Continuous Power | 380 Watts |
| Temperature Range | –4°F to 131°F |
| Weight | 3 lbs |
| Dimensions LxWxH | 7.3 x 5.1 x 2.8 In |
| Cable Cross Section | American Wire Gauge 6 |
